conn lndry 102

Title: conn lndry 102
Description: Connection to laundry post - middle beam, rear deck. Bottom plate 8MS 90x100 drilled with 2x12dia holes, side plate 6MS 75x245 drilled with 2x12dia holes.
File name: conn_lndry_102.JPG
Owner: Gallery Administrator
Dimensions: 2048 x 1536 px

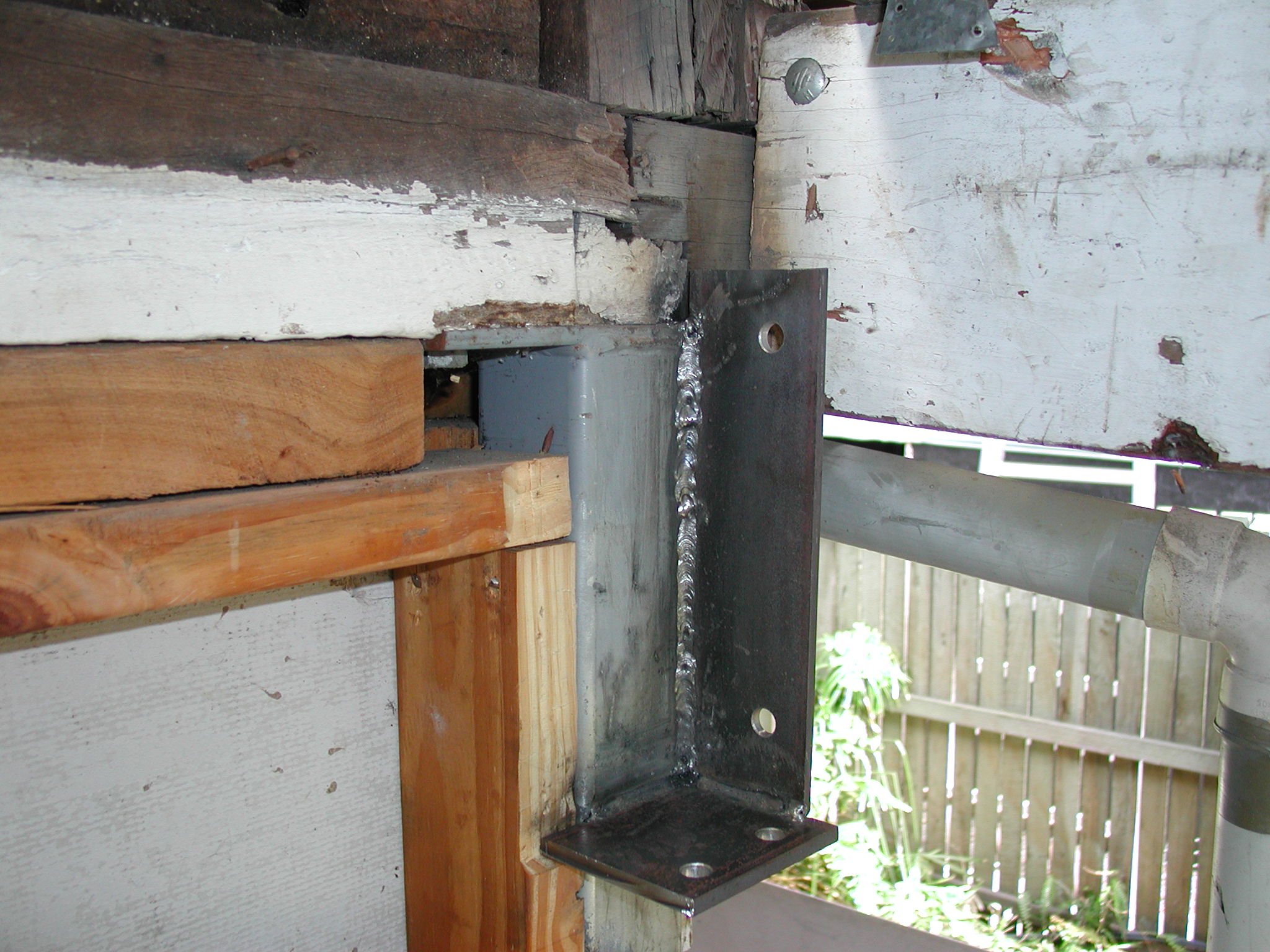

Connection to laundry post - middle beam, rear deck.
Bottom plate 8MS 90x100 drilled with 2x12dia holes, side plate 6MS 75x245 drilled with 2x12dia holes.
